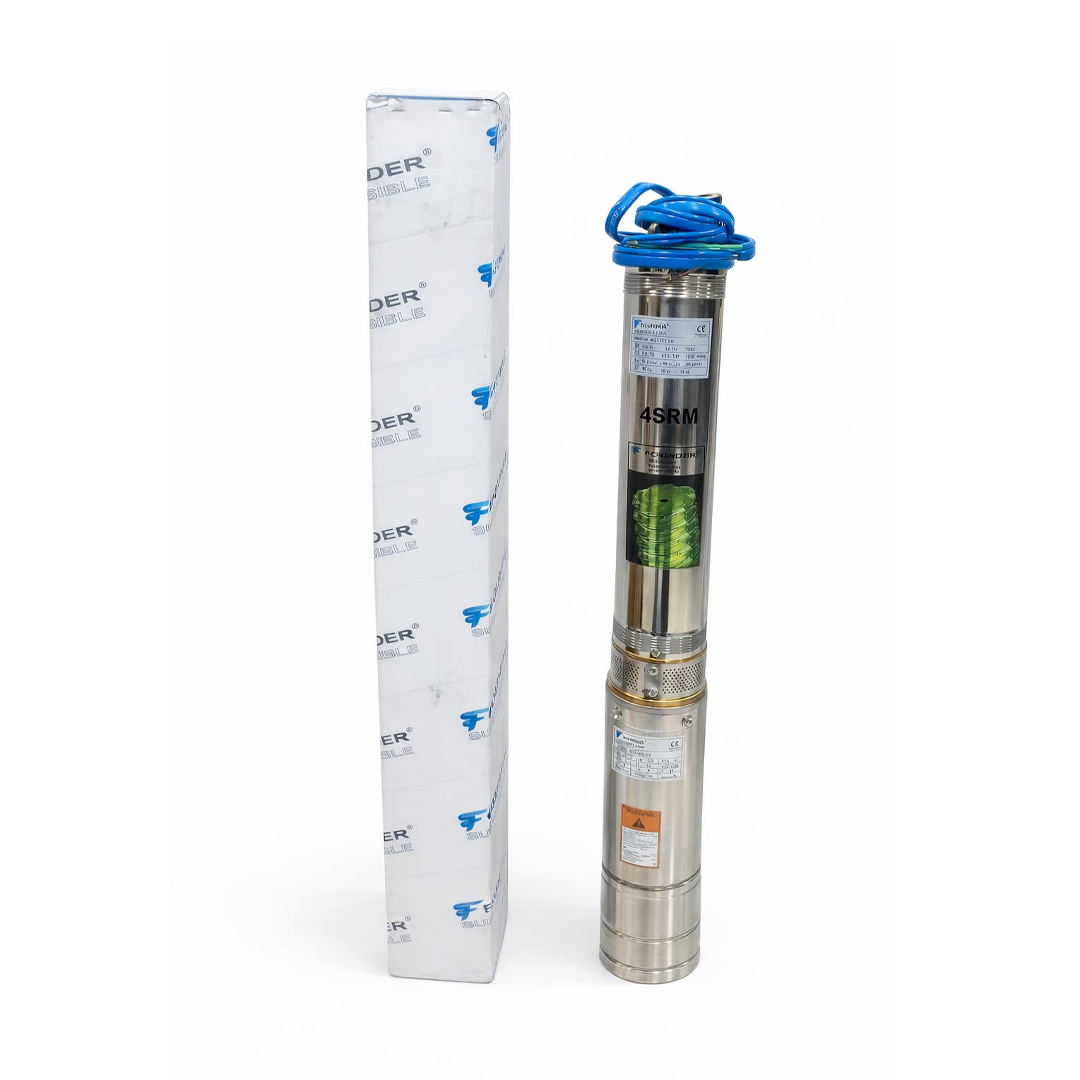

4SRM 3/7, 0.5HP

 Materials & Build

Pump body & motor bracket — stainless steel (AISI 304) for corrosion resistance.
Impellers & diffusers — Technopolymer for lightweight strength.
Shaft & bushes — stainless steel AISI 304 for wear resistance.
Seals & filters — stainless steel components to protect internals.
Motor — submersible, oil-filled or encapsulated electric motor designed to work fully submerged.

Installation Considerations

Fully submerge and suspend vertically in the borehole using a strong rope or rod.

Use proper submersible cable and grounding with a dedicated electrical supply.

Install rigid discharge pipe with check valve and avoid dry running.

Ensure clean water with minimal sand and maintain access for maintenance.

 Summary

• Type: 4″ borehole submersible pump.
• Power: ~0.5 HP (0.37 kW).
• Hertz:
• Current: ~4.0 A
• Capacitor: 30 µF
• Flow/Head: Up to ~4.7 m³/h (4700 litres/hour) and ~35m head (100 -125 ft).
• Use: Water extraction & supply from wells, irrigation, pressure boosting.
• Materials: Stainless steel, technopolymer parts.
• Protection: IP68 submersible.

Applications

• Domestic water supply from boreholes and deep wells
• House water tanks filling (ground tank to overhead tank)
• Small-scale irrigation (gardens, lawns, drip systems)
• Farm water supply for livestock and washing
• Pressure boosting systems with pressure tanks/autoclaves
• Residential buildings (homes, villas, small apartments)
• Commercial use (light duty) like shops, schools, mosques
• Rainwater or clean underground water pumping

Not suitable for

• Muddy or slurry water
• Sewage or wastewater
• High sand content beyond limit
