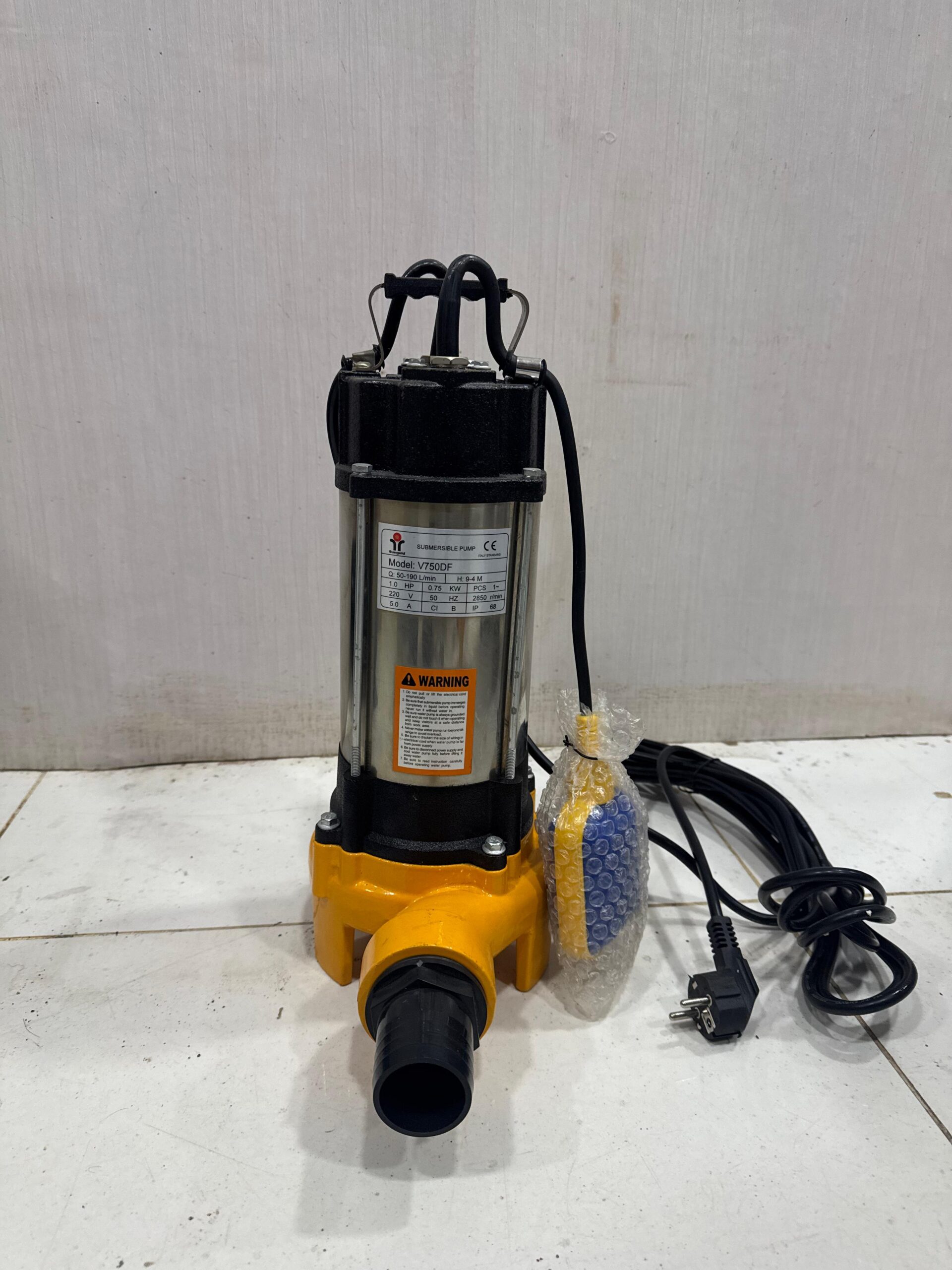

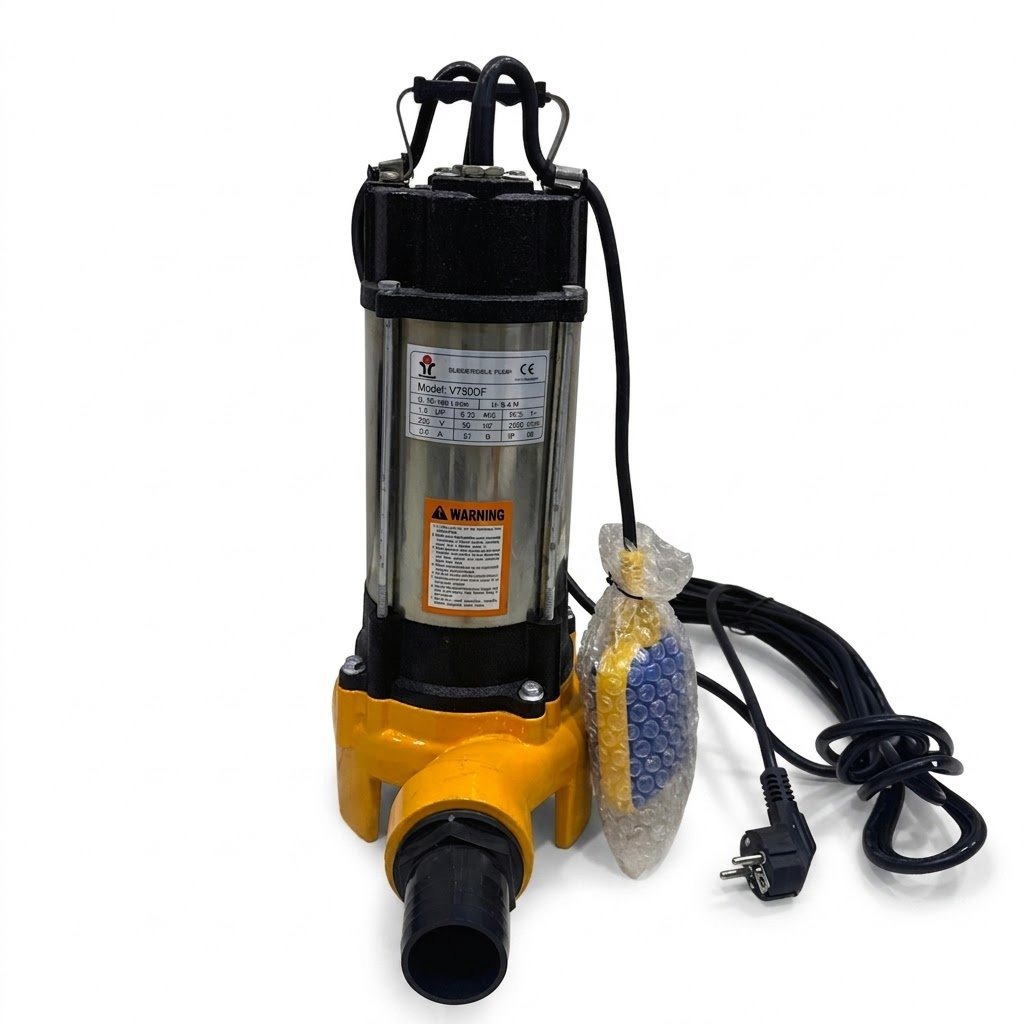

Motor & Power
- Motor Power: ~750 W (≈1 HP).
- Voltage: 220 V, 50 Hz (single-phase).
- Speed: Typically ~2850 rpm (standard single-phase submersible speed).
- Protection: IP68 waterproof rating for submerged use.
Hydraulic Performance
- Max Flow Rate: ~50-90 L/Min
- Maximum Head (Vertical Lift): ~4-9 m.
- Outlet Size: 2″ (50 mm) standard discharge connection.
- Max Particle Size: Can pass particles up to ~30 mm due to cutter impeller design.
Mechanical & Materials
- Pump Body: Cast iron (strong and durable for heavy duty wastewater).
- Impeller: Cutter to handle solids and fibrous material.
- Seals & Protection: Typically double mechanical seals and robust construction for submersed operation.
Size & Weight
- Typical Dimensions: ~5 × 25.5 × 51 cm (L × W × H).
- Weight: ~20 kg.
Applications
- Dewatering/sump drainage for basements, construction sites, factories.
- Sewage and wastewater discharge in residential, commercial, and municipal systems.
- Irrigation and agricultural drainage (fields, ponds, furrows).
- General wastewater removal where water contains fibers, debris, or small solids.
